Iron Iron Carbide Phase Diagram. Iron carbide (fe 3 c) is often labeled as the uncorroded portion of the steel. Information given by the diagram:

C is an interstitial impurity in fe. Iron, and carbon contents from o to 5%. Each grain of contains 0.76% c dissolved in the spaces of the fcc. We can see a eutectic and a eutectoid; In the alloy containing 0.18% carbon, the initial crystals of delta solid solution and the whole of liquid phase is completely transformed to from austenite on cooling. If the percentage of the carbon is in the range of 0 to 2.11 % then it is called steel and if the percentage of carbon is in the range of 2.11 to 6.67% then it is called cast iron. Austenite, austenitic steel * iron carbide: 7.6).given that iron carbide is an electronic conductor, this porous network. Both steel and cast iron are a mix of iron and carbon.

Each Grain Of Contains 0.76% C Dissolved In The Spaces Of The Fcc.


Uploaded on apr 12, 2013. 7.6).given that iron carbide is an electronic conductor, this porous network. Also, both alloys contain a small amount of trace elements. All the important concepts of iron iron carbide phase diagram are explained. A component is chemically recognizable, e.g.fe and c are the components in carbon steel. We can see a eutectic and a eutectoid; Ferrite, ferritic steel * iron: The diagram covers the temperature range from 60o0c to the melting point of. Iron, and carbon contents from o to 5%.

Body Centred Cubic (Bcc) Iron Has Relatively Small Interstitial Positions.

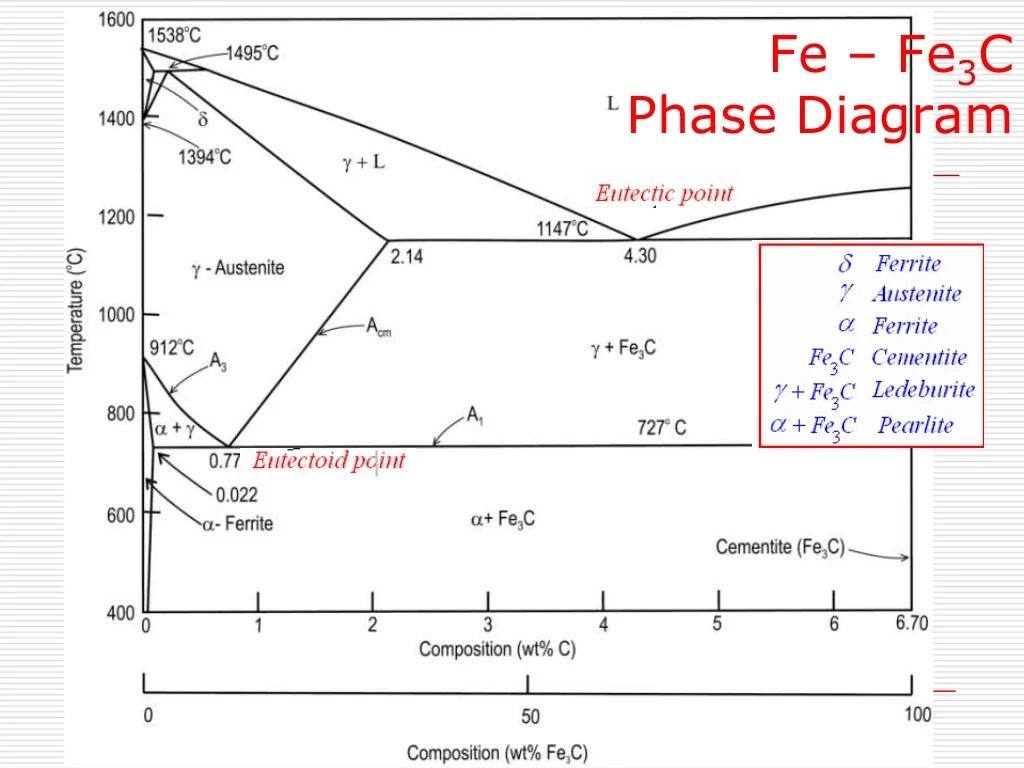

A ferrite bcc structure ferromagnetic fairly ductile. The ironiron carbide (fefe3c) phase diagram in their simplest form, steels are alloys of iron (fe) and carbon (c). Although it is known as an equilibrium diagram. In steels and cast irons, carbon can be present either as iron. Component and system a component is defined as pure metals ofwhich an alloy is composed. Dmitri kopeliovich phase diagram describes the system of alloys containing up to of carbon, discloses the phases compositions and their Fig 1 iron carbon phase diagram. Iron carbide (fe 3 c) is often labeled as the uncorroded portion of the steel. Carbide (cementite) or as graphite.

Various Critical Temperatures Like, Critical Temperature For Cementite, Lower Critical Temperature A1, A3.


During corrosion of such steel, the ferrite phase dissolves and a porous iron carbide network is exposed (see fig. And temperatures in which the various phases such as austenite, ferrite, and cementite are present in. Solid phases in the phase. Component system phases solubility limit microstructure phase equilibrium • phase diagram • interpretation of phase diagram 3. Austenite, austenitic steel * iron carbide: Information given by the diagram: If the percentage of the carbon is in the range of 0 to 2.11 % then it is called steel and if the percentage of carbon is in the range of 2.11 to 6.67% then it is called cast iron. Maximum solubility of c in the face centred cubic (fcc) gamma iron. 1, calculate the phases present at the eutectoid composition line at:

• Transforms To Fcc G‐Austenite At 912 °C


Maximum solubility of c in alpha iron is 0.025 % at 727 deg c. Of materials science and engineering. Part of the diagram after 6.67 wt% c is ignored as it has little commercial significance. It forms a solid solution with alpha, gamma and delta phases of iron. Both steel and cast iron are a mix of iron and carbon. These phases crystallise as a stacking. The graph is quite complex but since we are limiting our exploration to fe3c, we will only be. C is an interstitial impurity in fe. Also the isothermal reactions such as eutectoid, peritectic, and eutectic are in discussed.
